Honda

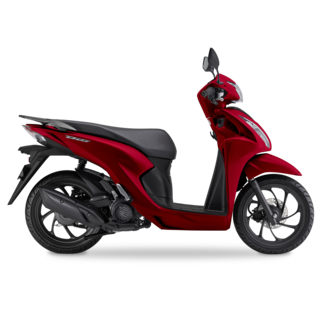

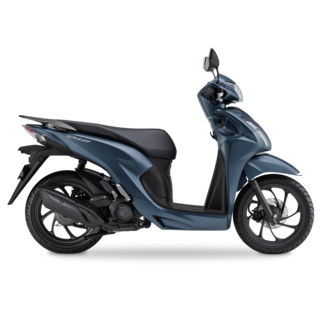

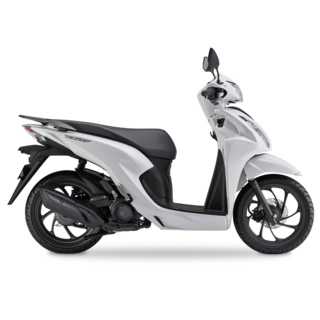

HONDA NSC110 Dio

HONDA NSC110 Dio

Colour

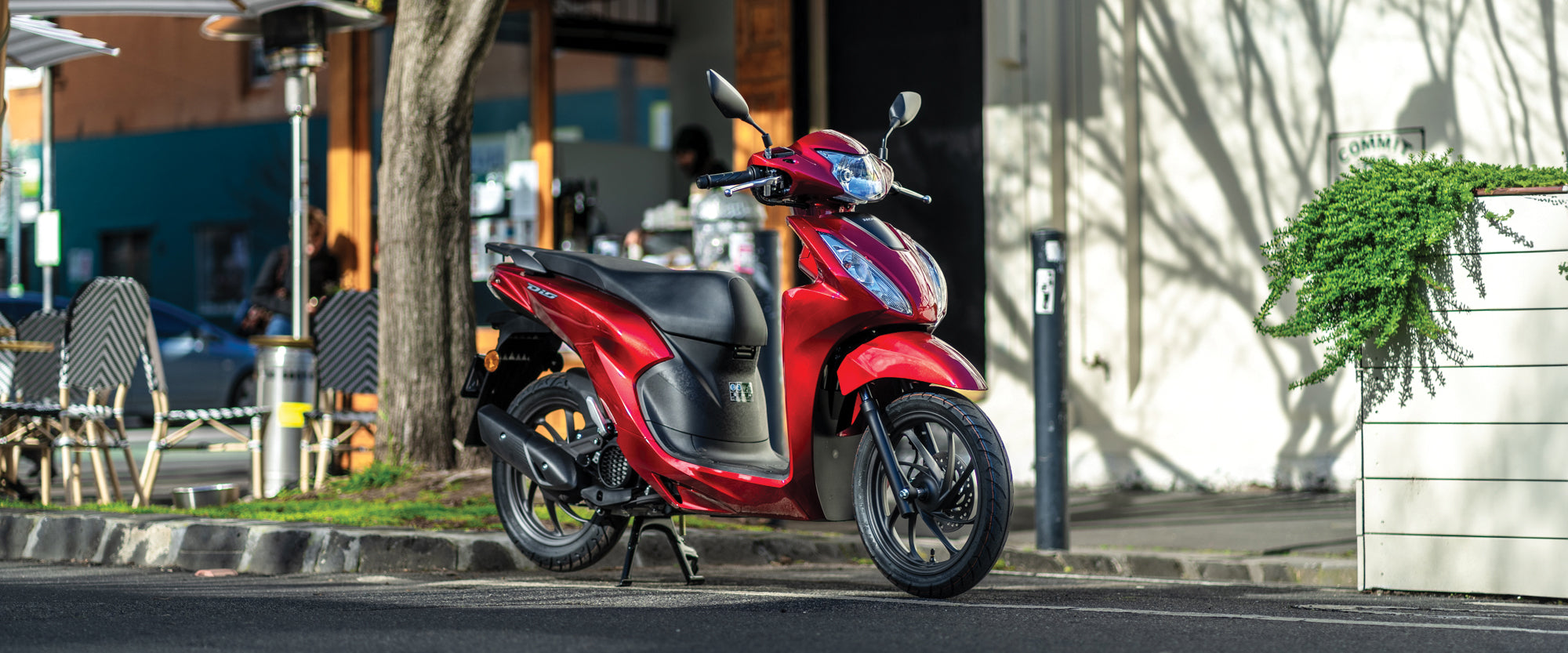

With a sleek, attractive body design and comfortable seating for two, Honda's Dio is the ideal scooter for your daily commute to work, trips to the shops or days out to the beach. Light as a feather, it has seamless acceleration that goes at the ease of a twist. Powered by a fuel efficient and reliable 109cc four-stroke engine, with PGM-FI. The Programmed Fuel-Injection engine delivers precise amounts of fuel to the engine and makes less of an impact on the environment and your pocket. Idle stop also reduces the Dios fuel consumption and noise while waiting at a stop, such as an intersection. Its larger than usual wide-diameter wheels give it confident handling and with Hondas unique Combined Braking System (CBS) offer optimum stopping ability. The generous storage compartment under the seat, electric start and large 4.9 litre fuel tank add to the DIOs versatility. Night riding is no hesitation with its two-tiered headlight system.

Economical Commuter

Proven 109cc engine with PGM-FI and Idle Stop

Practical

Spacious 18L under seat storage

Confidence

Honda’s unique Combined Braking System

Convenient

Learner approved and easy to handle

Features

HONDA NSC110 Dio Features

  • Traditional step-through design with natural riding position
  • Fuel efficient engine
  • Combined braking system (CBS)
  • 18L underseat storage space
  • Low maintenance

Specifications

Engine

Engine
Bore & Stroke (mm) 47 x 63.1
Compression Ratio 10:1
Cylinders 1
Displacement (cc) 109
Engine Type Air-Cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 2
Transmission
Transmission CVT
Drive Belt

Chassis

Brakes
Brakes (F) 1x 190mm disc
Brakes (R) Drum
Suspension
Front Adjustability -
Front Suspension Type Telescopic fork
Front Wheel Travel (mm) 81
Rear Adjustability -
Rear Suspension Type Single shock
Rear Wheel Travel (mm) 76

Dimensions

Capacities
Fuel Capacity (L) 4.9
Dimensions
Wheelbase (mm) 1,255
Ground Clearance (mm) 150
Overall Height (mm) 1,100
Overall Length (mm) 1,870
Overall Width (mm) 686
Seat Height (mm) 760
Weights
Kerb Weight (kg) 96
