Honda

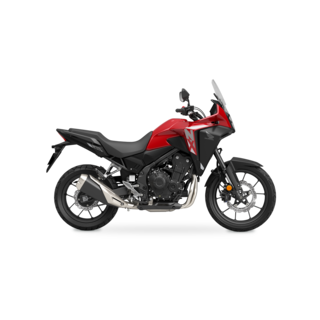

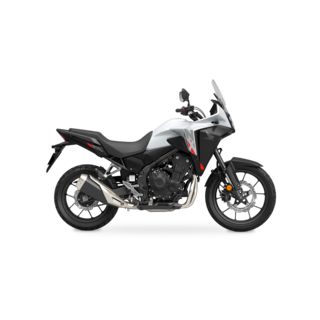

HONDA NX500

HONDA NX500

Colour

Sometimes you feel like picking a corner of the map and exploring and sometimes, you need a quick ride to the shops. For a compact bike that can handle real adventures and all the commutes in-between, the new Honda NX500 is the ride for you. The 471cc twin-cylinder engine offers easy-to-access power and plenty of torque. Now 3kg lighter than its predecessor, this bike shines on backroads and city streets alike. Together with rugged styling, long-travel suspension, a tall windscreen and more, it’s ready for adventure.

Advanced Connectivity

Stay connected with 5inch full colour TFT Display and Honda RoadSyncD5

Adventure ready

Lighter cast wheels and revised spring rate and damping settings to improve handling so you can enjoy the adventure ahead.

Added safety

Front and rear disc brakes, combined with standard Anti-lock Braking System (ABS)D9.

Performance and Handling

471cc fuel injected twin cylinder engine delivering high manoeuvrability in the low-mid range RPM and sporty riding in the high RPM range level.

Features

HONDA NX500 Features

  • Twin-cylinder engine with plenty of low-to-mid range power and torque
  • Assist/slipper clutch
  • Adjustable rear suspension
  • 19" front wheel
  • Generous fuel tank

Specifications

Engine

Engine
Bore & Stroke (mm) 67 x 66.8
Compression Ratio 10.7 : 1
Cylinders Inline 2
Displacement (cc) 471
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel injection
Starter Electric
Valves 8
Transmission
Transmission 6-speed
Drive Chain

Chassis

Brakes
Brakes (F) 2x 296mm disc, ABS
Brakes (R) 1x 240mm disc, ABS
Suspension
Front Adjustability -
Front Suspension Type 41mm telescopic fork
Front Wheel Travel (mm) TBC
Rear Adjustability Preload
Rear Suspension Type Single shock
Rear Wheel Travel (mm) TBC

Dimensions

Capacities
Fuel Capacity (L) 17.5
Dimensions
Wheelbase (mm) 1,445
Ground Clearance (mm) 180
Overall Height (mm) 1,410 (Low screen) / 1,445 (High screen)
Overall Length (mm) 2,155
Overall Width (mm) 830
Seat Height (mm) 834
Weights
Kerb Weight (kg) 196
