brake lever lowering

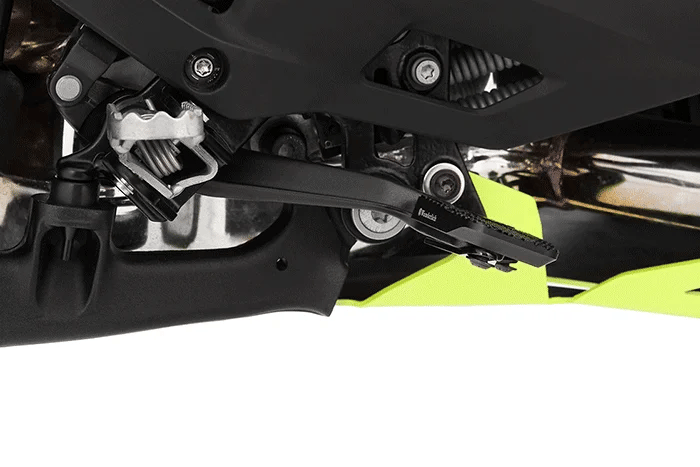

Eccentric. The Wunderlich brake lever lowering. With a clever design feature, we lower the brake pedal by 10 millimetres. This modification offers crucial benefits in terms of safety and ergonomics, especially when combined with lowered footrests.

Function and product features

• Lowering of the brake lever pedal by 10 millimetres
• Safety: Avoidance of missteps during braking, especially in critical situations! The brake lever lowering is highly recommended as a complement to footrest lowering, ensuring the foot can reach the brake pedal without needing to be raised – not only during emergency braking, but for every braking action – helping to avoid missteps or stepping "into thin air".
• Ergonomics and comfort: The brake lever lowering allows for a natural movement and intuitive operation of the brake pedal, particularly when footrests are lowered.

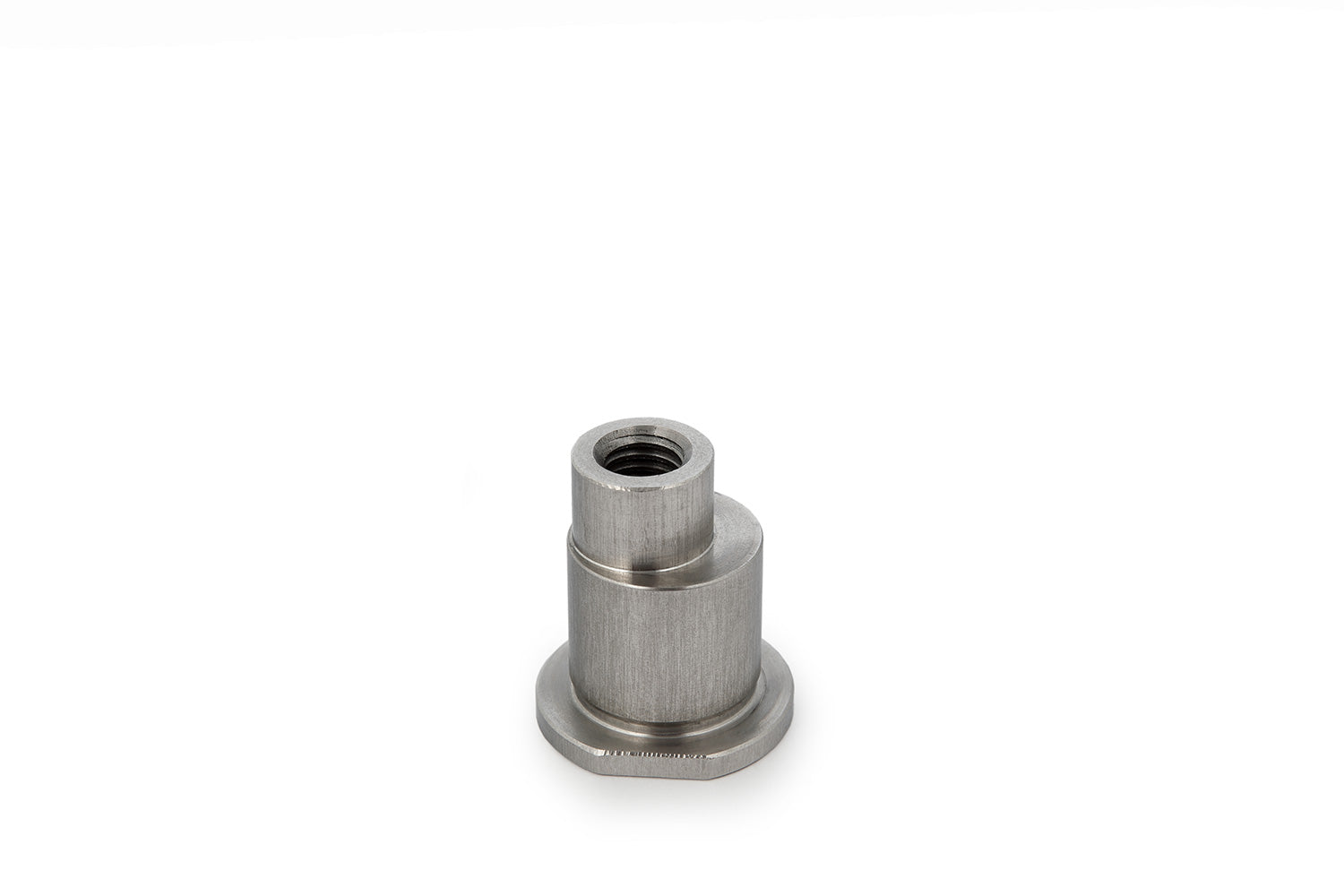

• Solid construction: We have designed a brake lever mount that features an eccentrically positioned mount for the brake lever's pivot axis, completely replacing the original brake lever mount.
• Due to the leverage, the eccentric mounting results in an ergonomically effective lowering of the brake pedal by 10 millimetres.
• Simple, quick installation with minimal effort
• No ABE (general operating permit) required

Technical data

• Material
  • Brake lever mount
    Stainless steel, rust-free, precisely and carefully crafted
  • Secure attachment
    Aluminium, precisely and carefully crafted
• Dimensions
  • Ergonomically effective lowering
    • 10 mm

Your Wunderlich advantages

• Made by Wunderlich
• Made in Germany
• ERGO
• Plus a 5-year guarantee.

Avoiding the risk of missteps while braking – when it matters most. The brake lever lowering allows for intuitive operation of the brake pedal in the natural movement, even with lowered footrests.

This innovative brake lever lowering provides a noticeable, ergonomically effective reduction of the brake pedal by 10 millimetres, offering significant safety and ergonomic benefits. Particularly in combination with lowered footrests, it helps to prevent unwanted missteps while braking. The lowering eliminates the need to lift the foot to reach the brake pedal, effectively minimising the risk of stepping "into thin air" – especially during sudden braking manoeuvres. Furthermore, this modification supports the natural movement, allowing for intuitive and comfortable operation of the brake pedal. This is especially beneficial when footrests are already lowered.

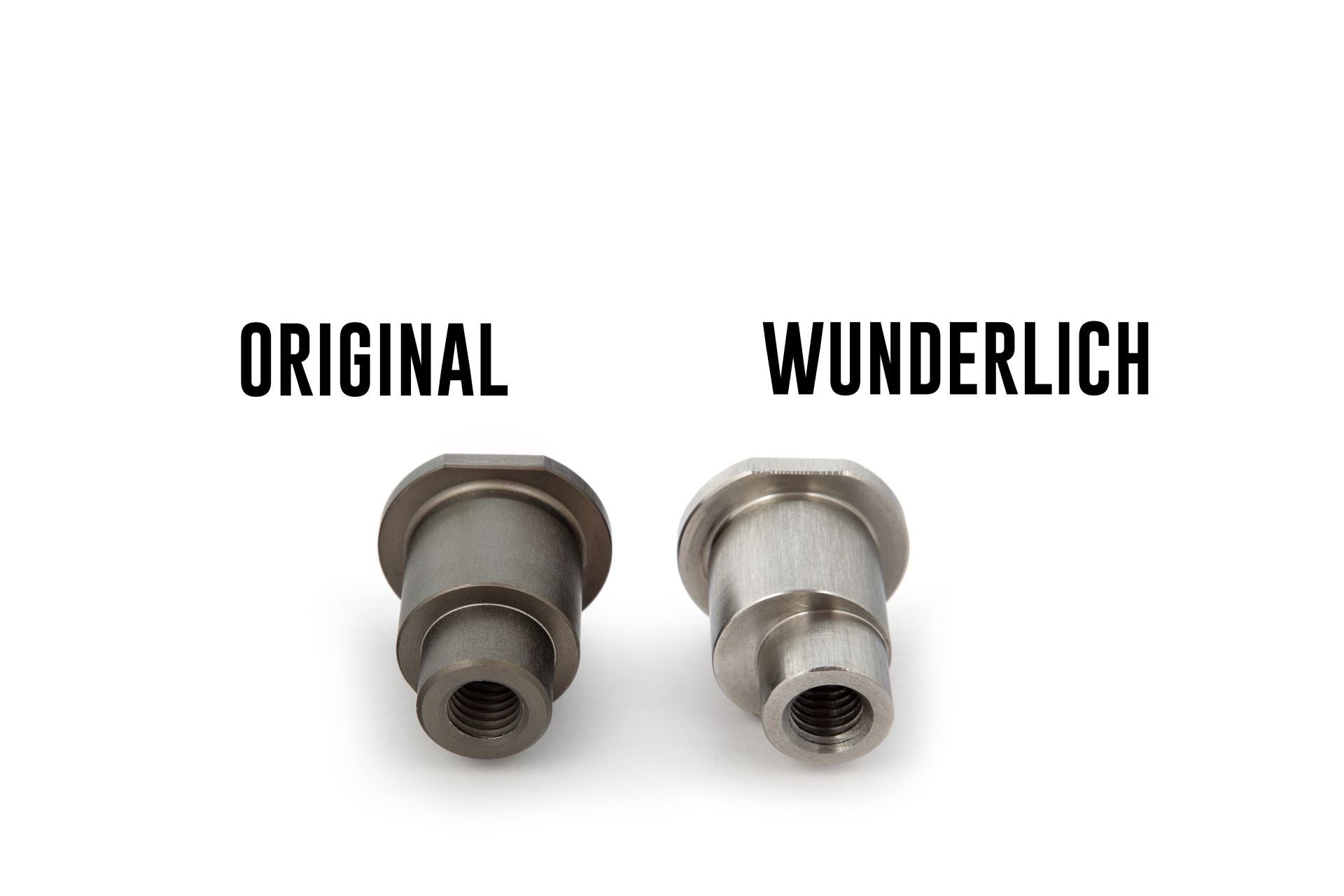

The solid construction of this component fully replaces the standard brake lever mount. The eccentrically lowered mounting of the pivot axis ensures an ergonomic adjustment, lowering the brake pedal by 10 millimetres. The brake lever lowering can be quickly installed – no ABE is required.
