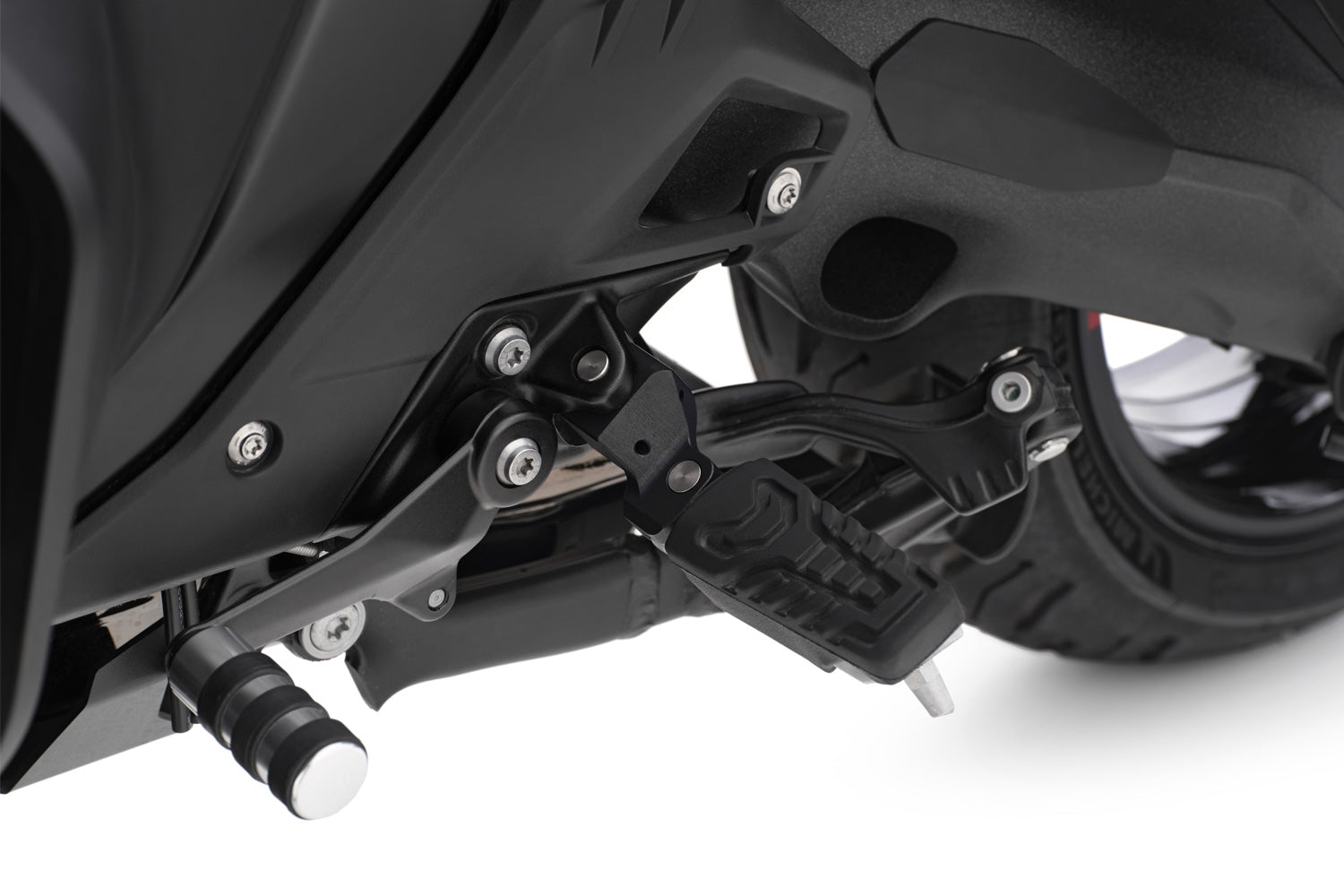

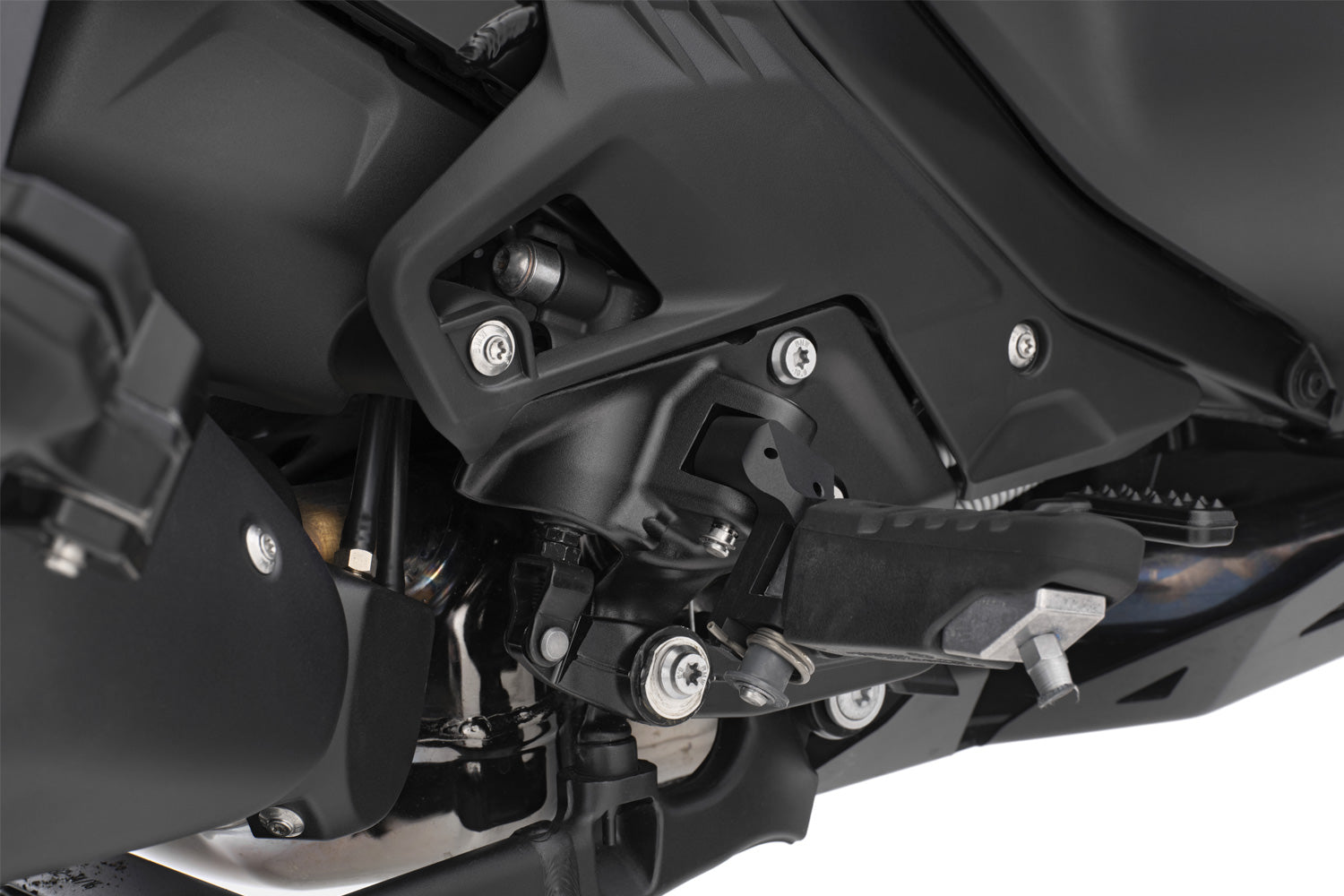

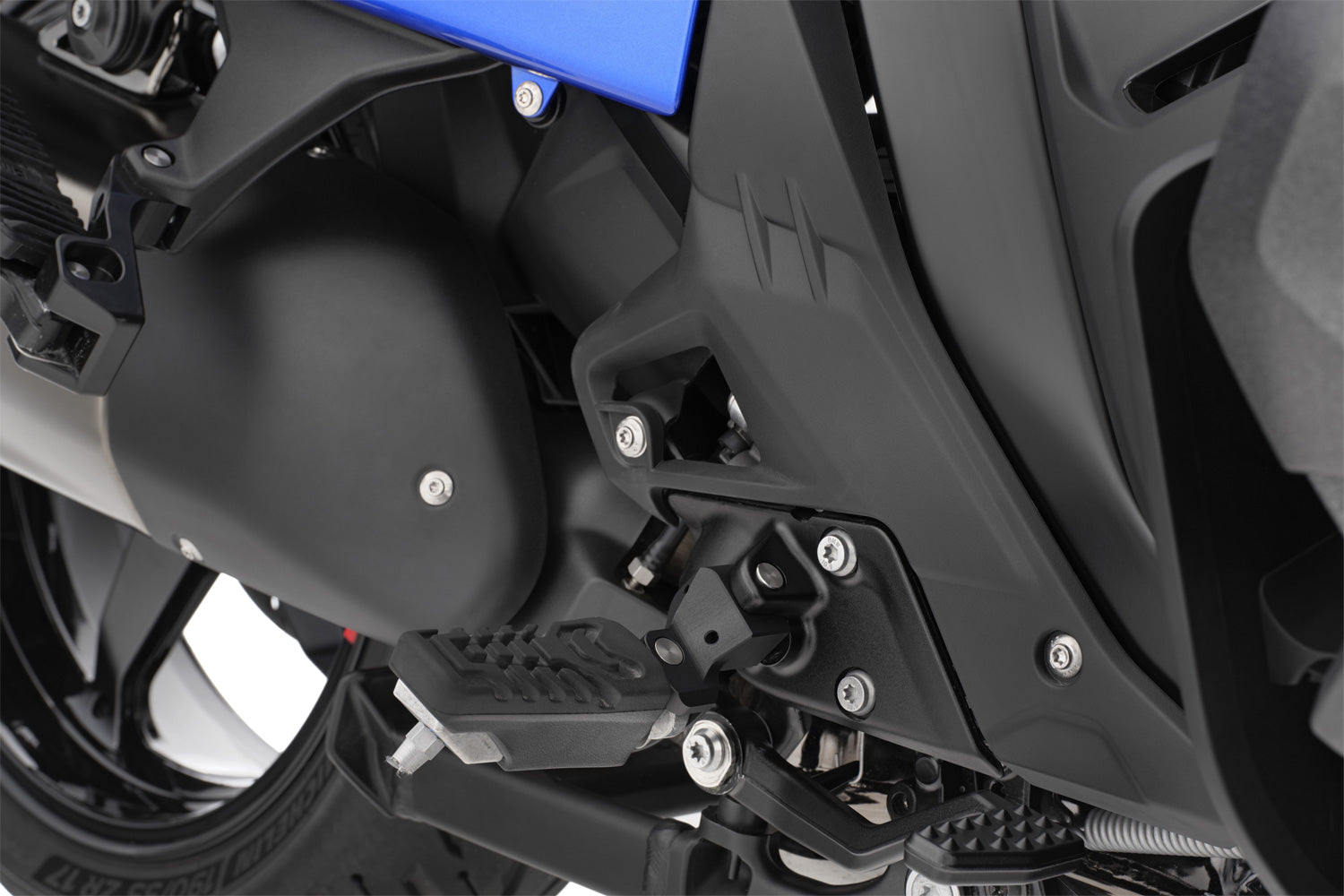

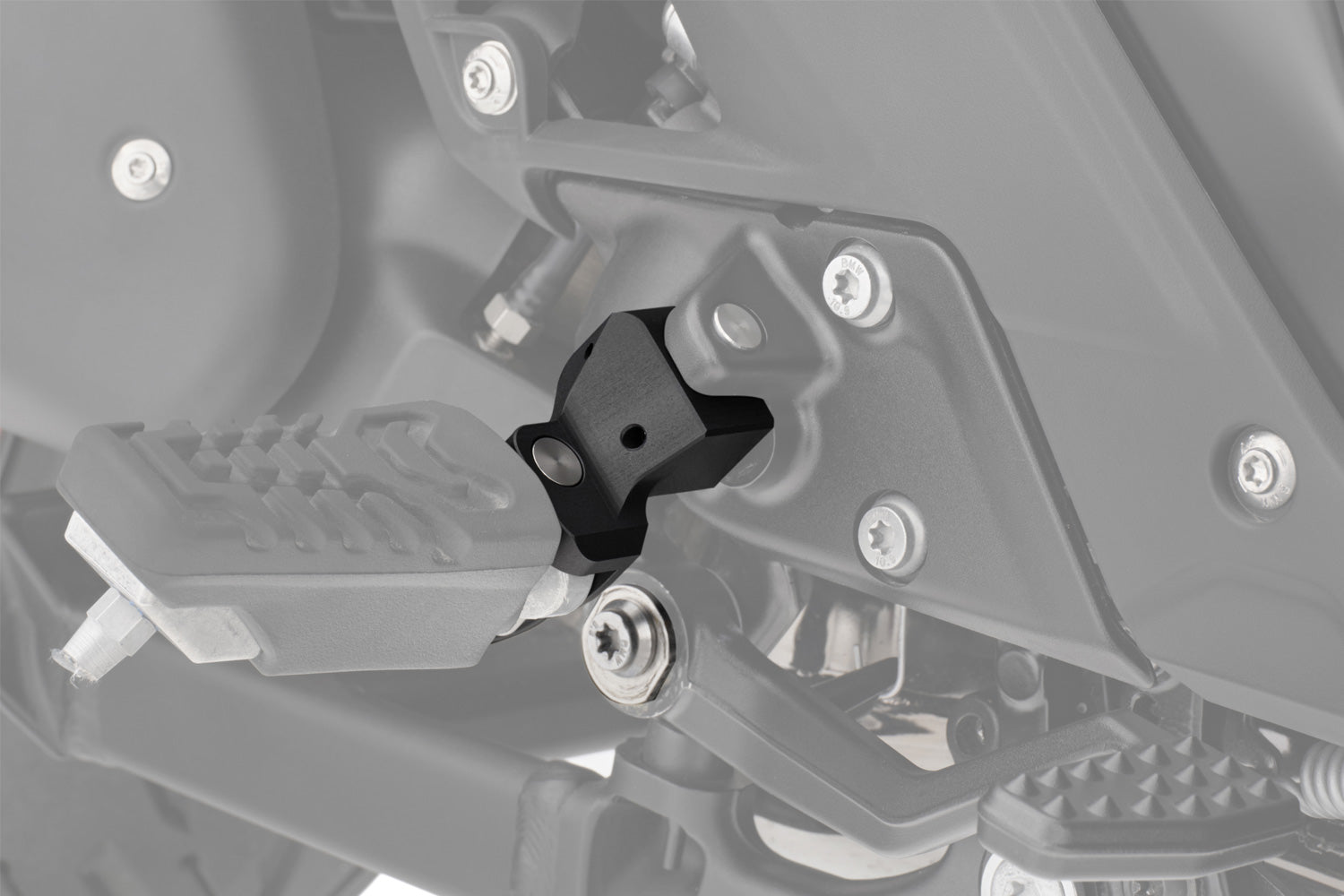

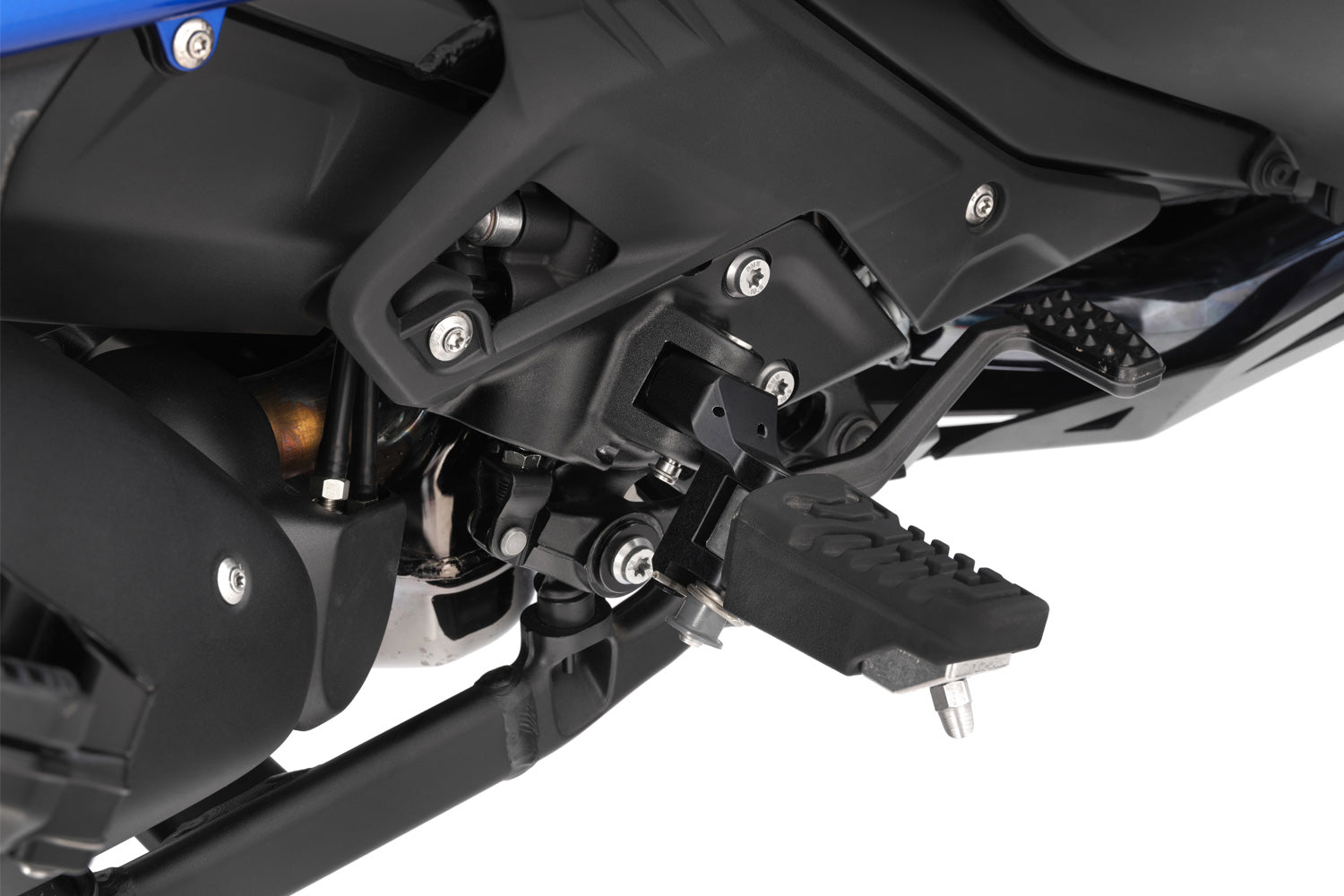

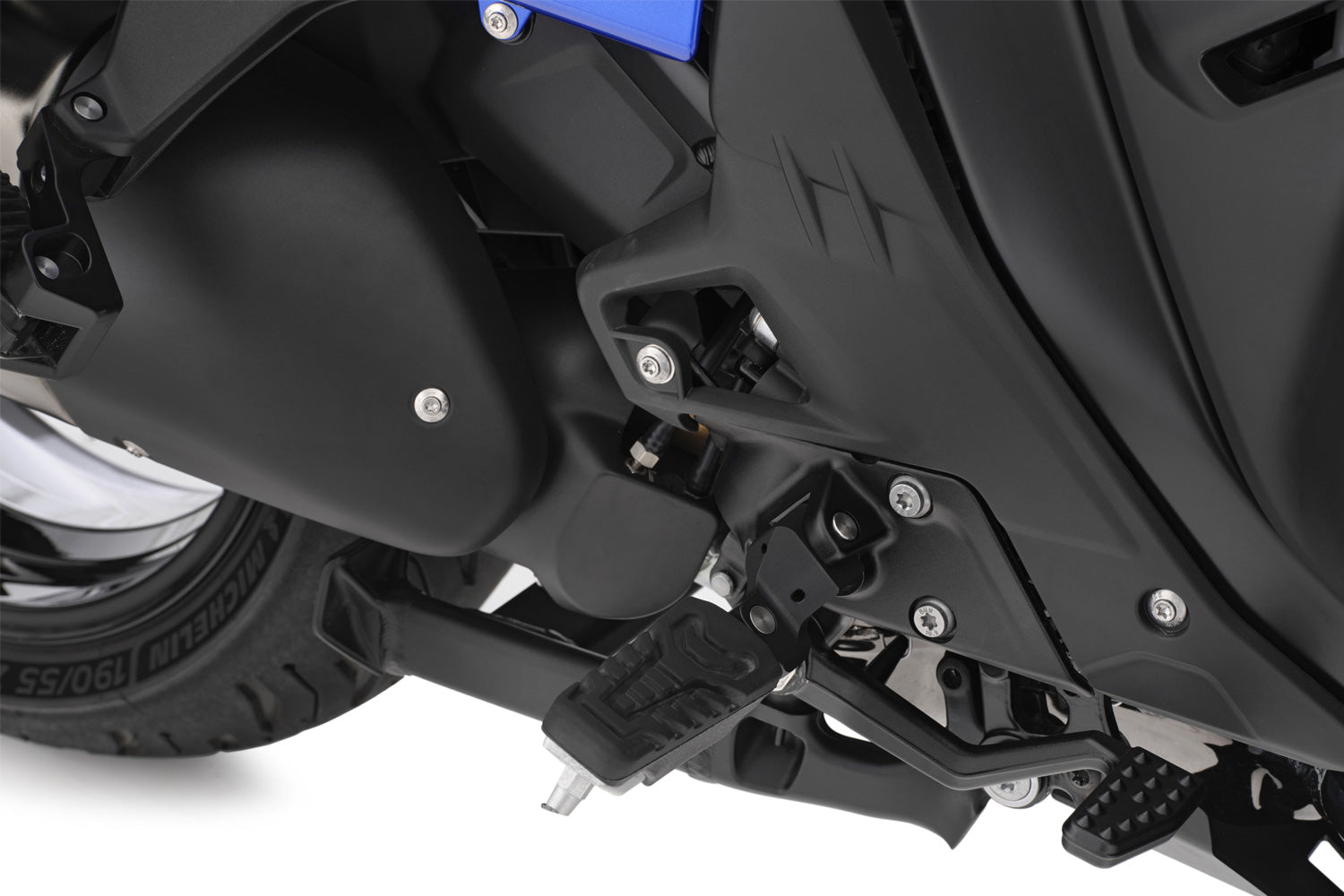

ERGO Rider Footrest Lowering Kit for BMW R 1300 RT - black

Noticeable Ergonomics for the Rider

Our ERGO footrest lowering kit opens up the knee angle, providing a notably relaxed, comfortable riding position suitable for long distances. Includes brake lever lowering.

Features and Benefits of the Footrest Lowering Kit

• Lowering of rider footrests by approx. 30 mm compared to the original position, with a slight forward offset
• Creates a more ergonomic and open knee angle
• This open angle helps reduce:
  • mechanical stress on the knee joints
  • pressure on blood vessels behind the knees
• Provides noticeably greater comfort and fatigue-free riding even on long tours
• Precision-machined from solid material for optimal lean angle clearance
• Original rider footrests are reused with the lowering brackets
• Complete set with mounting kit and brake lever lowering (#14324-002)
• Simple installation on the standard mounting console
• Supplied with ABE*

Recommendation

• As a complement, we offer the matching passenger footrest lowering kit: Wunderlich ERGO Passenger Footrest Lowering #31420-102

Included in the Set: Matching Brake Lever Lowering

Features and Benefits of the Wunderlich Brake Lever Lowering (#14324-002)

• Perfect complement to the footrest lowering with key advantages in safety and ergonomics
• Ergonomics & Comfort: Enables a natural foot movement and intuitive brake pedal operation – especially with lowered footrests
• Safety: Helps avoid missteps when braking – essential in critical situations! Ensures proper foot positioning for safe braking, reducing the risk of missed or incomplete pedal engagement
• Quick and easy installation with minimal effort
• No ABE required

Technical Data

Footrest Lowering

• Material
  • High-strength aluminium, precisely machined and finished to a high standard

• Effective ergonomic lowering
  • 30 mm – with slight forward offset

• Dimensions
  • Material thickness: 5 mm
  • Width: 860 mm (across side flaps)
  • Height: 790 mm

• Colour
  • Black

Brake Lever Lowering

• Material
  • Brake lever mount: Stainless steel, corrosion-resistant, precisely manufactured
  • Fastener: Aluminium, precision-made and perfectly fitted

• Dimensions
  • Effective ergonomic lowering: 10 mm

Your Wunderlich Advantages

• Wunderlich premium product
• Wunderlich design – integrated and functional
• ERGO line
• Made by Wunderlich
• Made in Germany
• Wunderlich 5-year warranty

Our comfortable ERGO Footrest Lowering Kit prevents the painful effects of a tight knee angle

An open knee angle noticeably increases rider comfort. It reduces strain on the knee joints and prevents constriction of blood flow behind the knees.

With our slightly forward-oriented lowering kit, both feet are repositioned around 30 mm lower. The result is a more relaxed, open leg posture, perfect for long-distance touring. It helps relieve – and often eliminate – discomfort caused by overly tight knee angles. Riding becomes a true pleasure again.

This ergonomic upgrade significantly enhances long-distance comfort – and still retains generous lean angle clearance.

We supply the matching Wunderlich Brake Lever Lowering together with the ERGO footrest lowering kit

Why do we include it?

Because it allows intuitive and natural brake pedal operation even with lowered footrests – contributing further to both comfort and safety.
