Wunderlich Vario joint rider EVO1 (pair)

Our Vario footpeg system is the ultimate solution for adjustable footpegs. With a 100 mm adjustment range, it leaves nothing to be desired. Whether you have large or small feet, want to increase cornering clearance, or simply relieve knee strain for a more comfortable ride, this system offers unparalleled flexibility. The eight adjustment positions in 45° increments over a full 360° provide enormous individual flexibility. This comfort upgrade is available for both rider and passenger. The system is always supplied with ABE. All parts are made from high-strength aluminium and are anodised in silver or black.

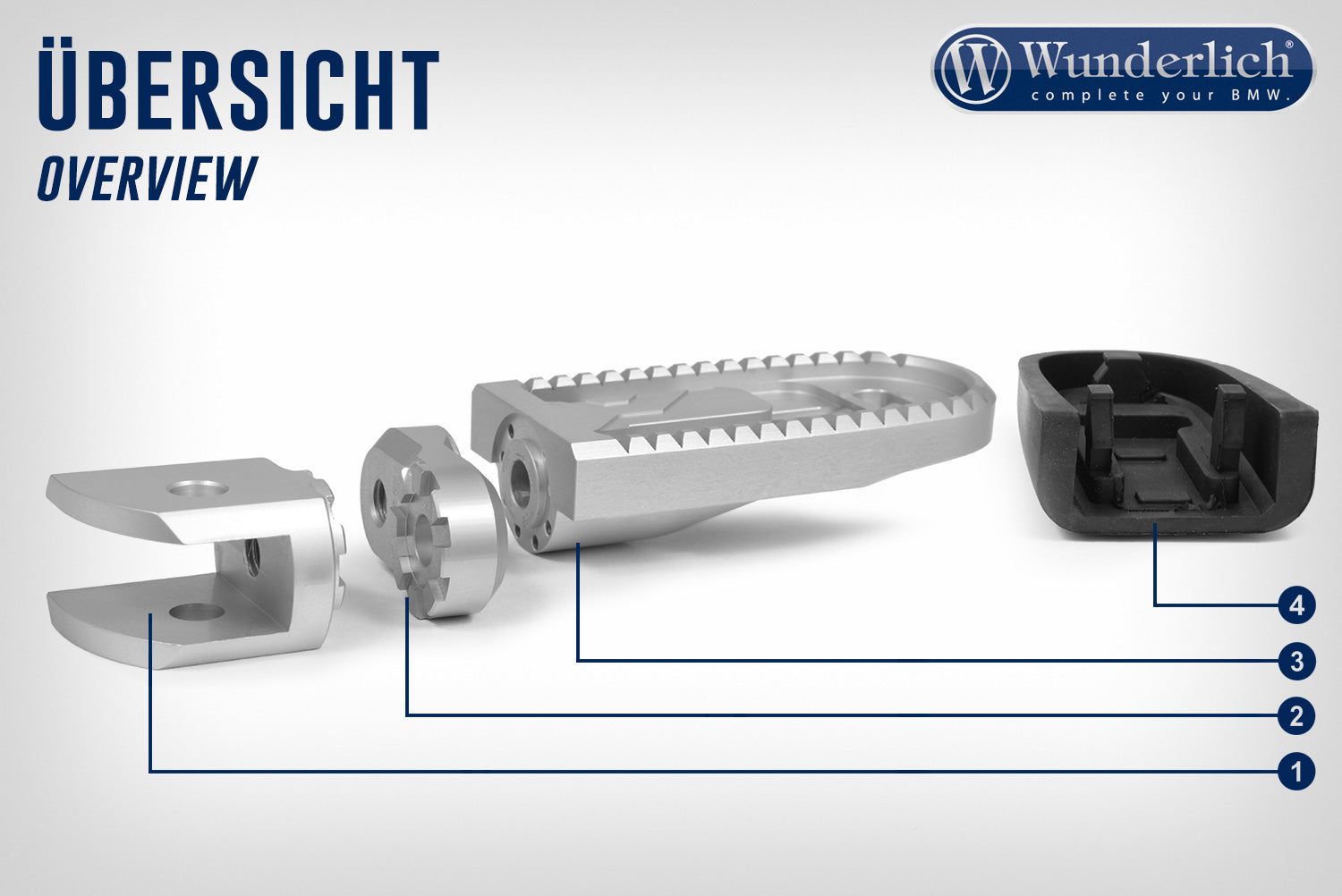

For complete installation, each side of the vehicle requires the Vario joint (1), the Vario adapter (2), and the desired footpeg (3), which can optionally be equipped with the footpeg rubber (4).

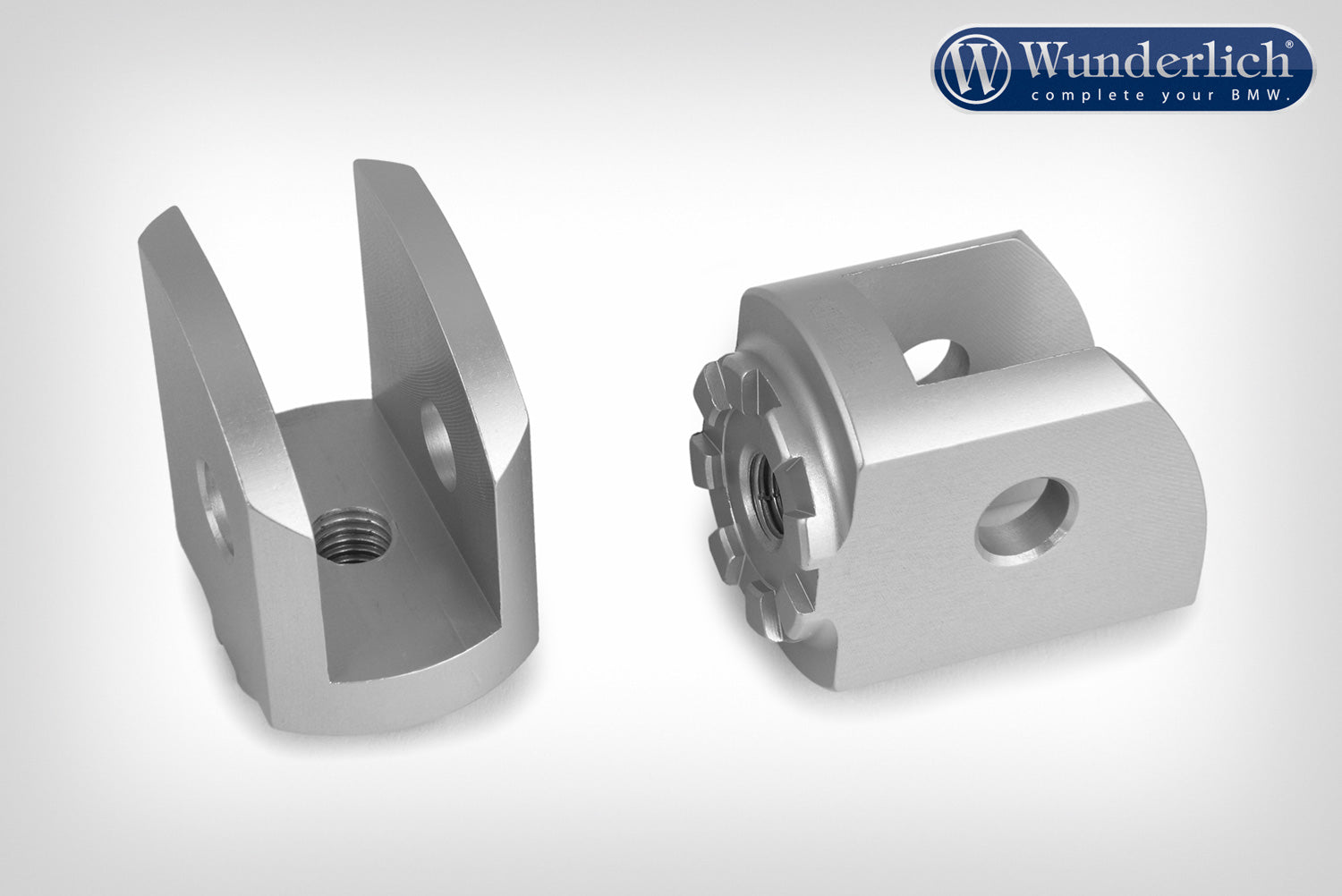

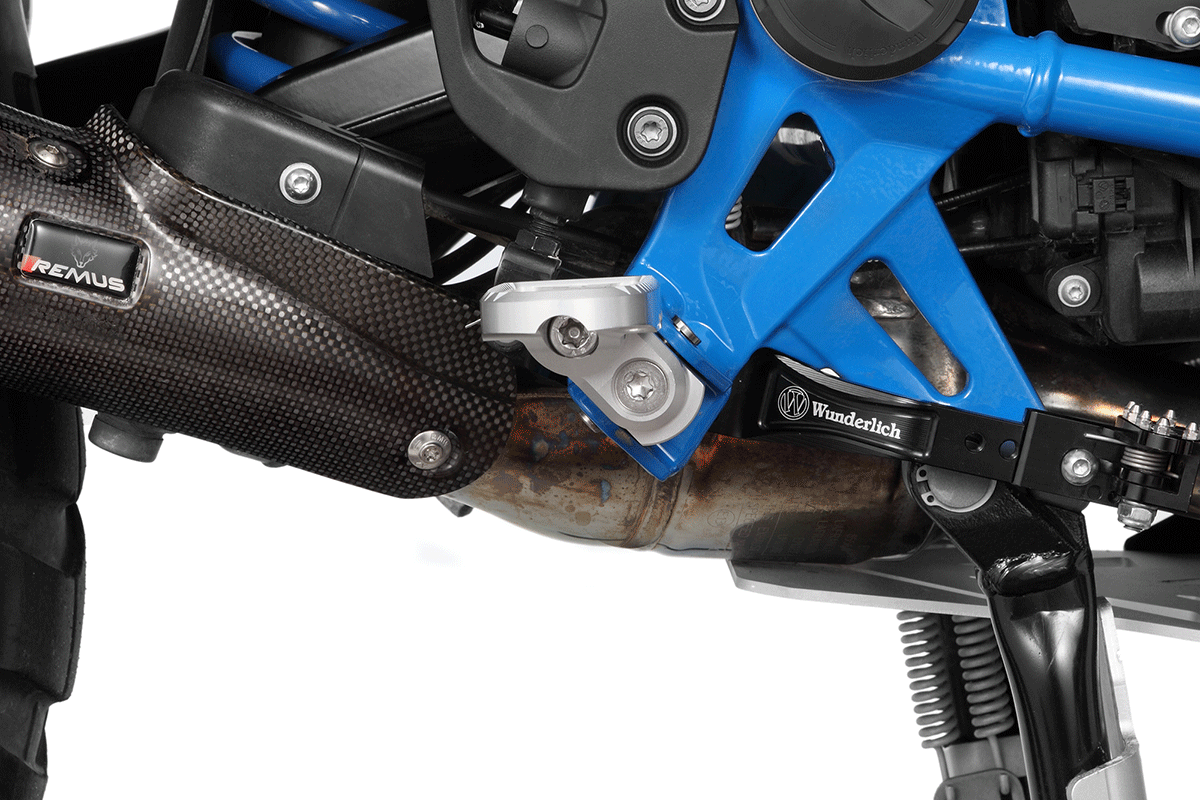

The system's base is the model-specific, silver or black Vario joint, which is mounted in place of the footpeg on the footpeg bracket.

The Vario adapter is then mounted to the joint, available in silver or black, with lengths of 23 mm (#25912-000 in silver, #25912-002 in black), 30 mm (#25912-030 in silver, #25912-032 in black), or 50 mm (#25912-050 in silver, #25912-052 in black). It can be mounted in eight positions, offset by 45° increments.

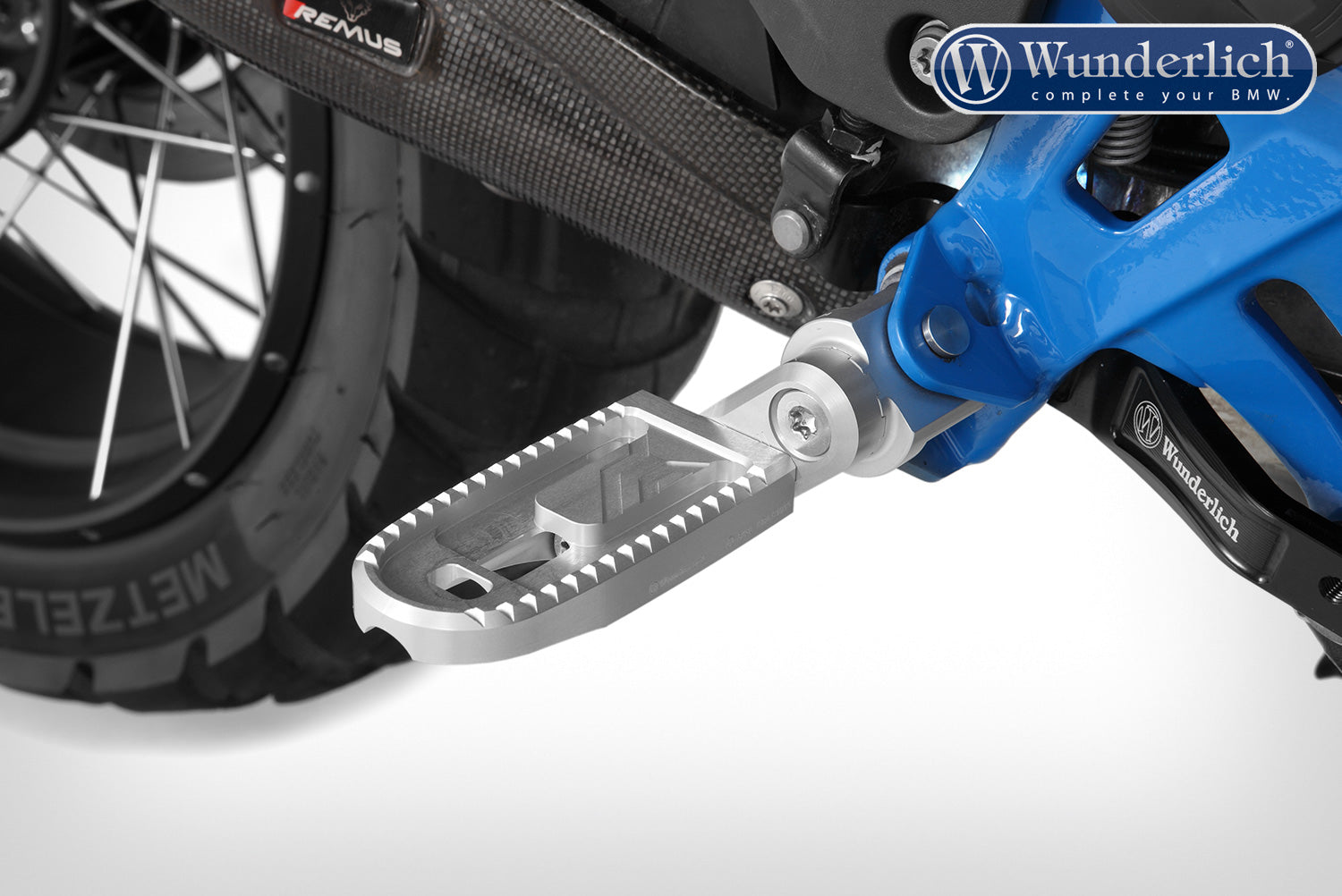

Now, the silver (#25911-001) or black footpeg (#25911-002) is attached to the adapter, and it can optionally be fitted with a footpeg rubber (#25913-002).

Supplied with ABE.

Recommendation

• For the BMW models
• R 1250 GS + Adventure
• R 1200 GS LC + Adventure

we recommend installing the footpeg lowering kit in combination with the brake lever lowering kit #13511-002.
